Desview D21 Pro 21.5" LCD Production Monitor
Disclaimer: This product has extended lead time. Please allow an additional 7 - 10 business days for product delivery, from time of order completion.
Description
Delivering bright, razor-sharp images with pinpoint color accuracy, the D21 Pro 21.5" LCD Production Monitor from Desview is a professional field monitor that combines premium image quality with maximal convenience. With a drop-resistant, quick release protective housing, built-in VESA mount, and table stand, transportation and setup of the D21 Pro are easy, with or without a light stand. Its 95% DCI-P3 color gamut and 10-bit color depth ensure superior color accuracy on set, while its 1000-nit brightness and 1000:1 contrast ratio allow solid performance in diverse conditions.
The D21 Pro provides comprehensive auxiliary functions, including histogram, waveform, vectorscope, false color, zebra, focus peaking, anamorphic de-squeeze, and more. Supporting vertical and horizontal video formats individually or simultaneously, the OL16 features eight different multiview modes, including single, dual, triple, and quad-view. Input selection buttons below the display make switching between the two HDMI and three SDI video inputs fast and intuitive.
- 21.5" LCD with 1920 x 1080 native resolution
- 1000-nit brightness and included sun hood for daylight viewing
- 10-bit color depth, 95% DCI-P3 color gamut, and 1000:1 contrast ratio

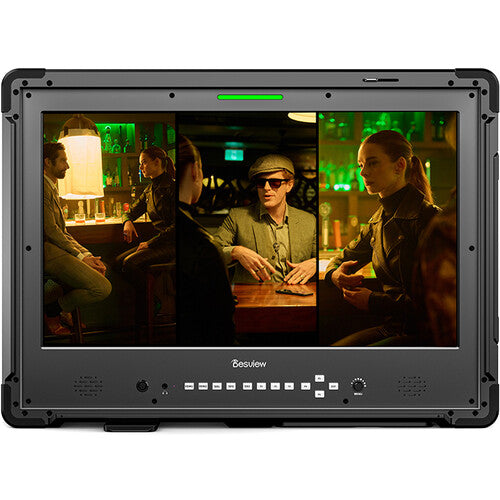

- Eight multiview monitoring modes with horizontal and vertical video support
- Multiple built-in LUTs and custom 3D LUT support for enhanced efficiency
- Waveform, histogram, and vectorscope for precise exposure control

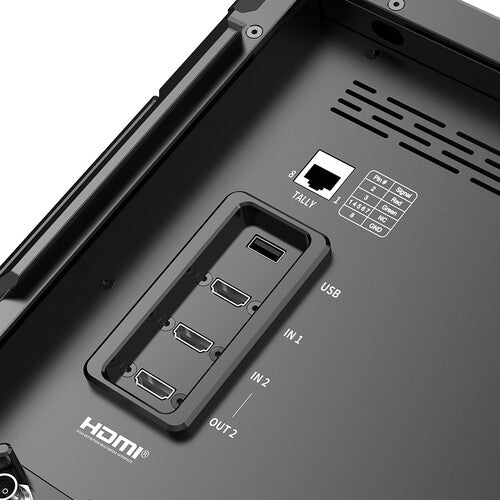

- Two 4K60 HDMI video input channels with single loop output
- Three SDI video channels with inputs and loop outputs
- 7 to 26 VDC power input and three 10 VDC power outputs
- Works with separately available Gold and V-mount battery plates
- RJ45 tally input and additional 7 to 26 VDC XLR power input

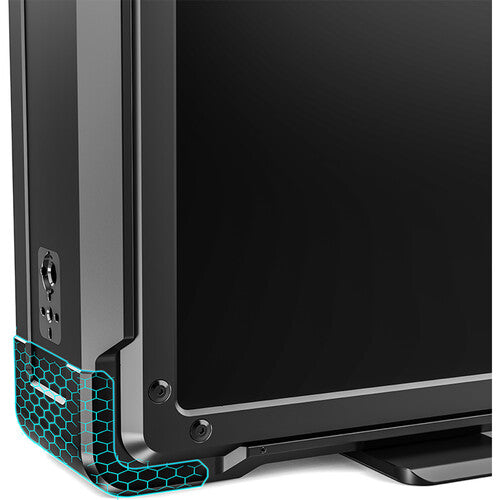

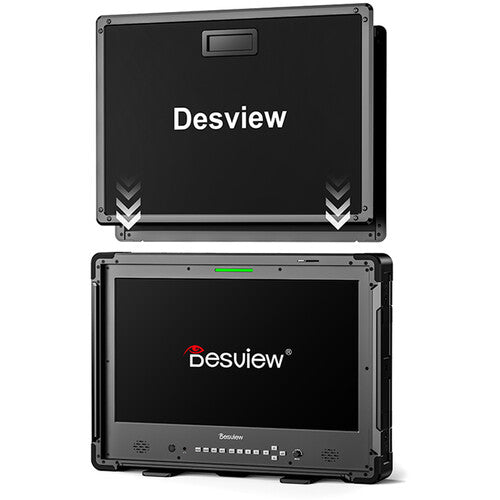

- Pressure- and drop-resistant housing with quick release functionality

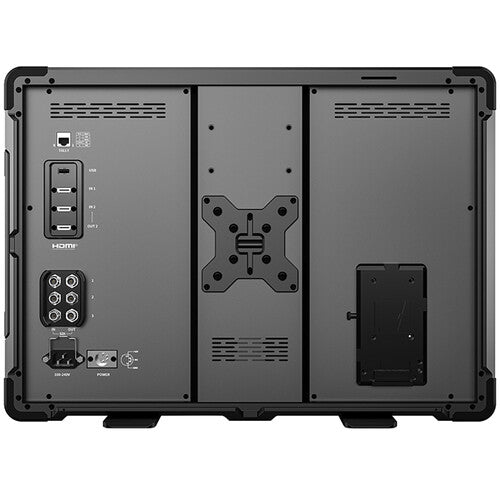

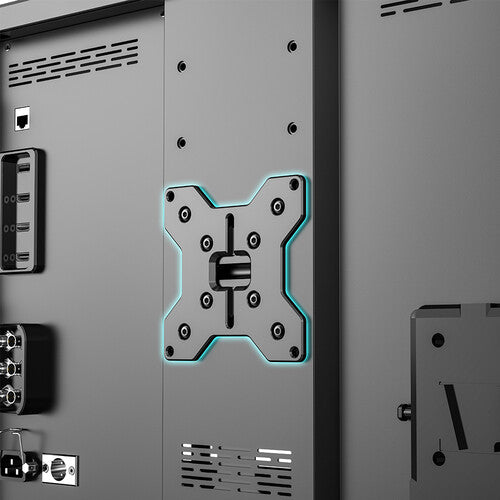

- VESA back mount for rapid, stable mounting on a light stand
- Multiple buttons for input selection and auxiliary functions
- Tally indicator provides a red, green, or yellow light above the display
- Aluminum alloy and composite build with multiple 1/4"-20 and 3/8"-16 threads
**This product has extended lead times. Please allow 7 - 10 business days for delivery, upon order completion.
Download

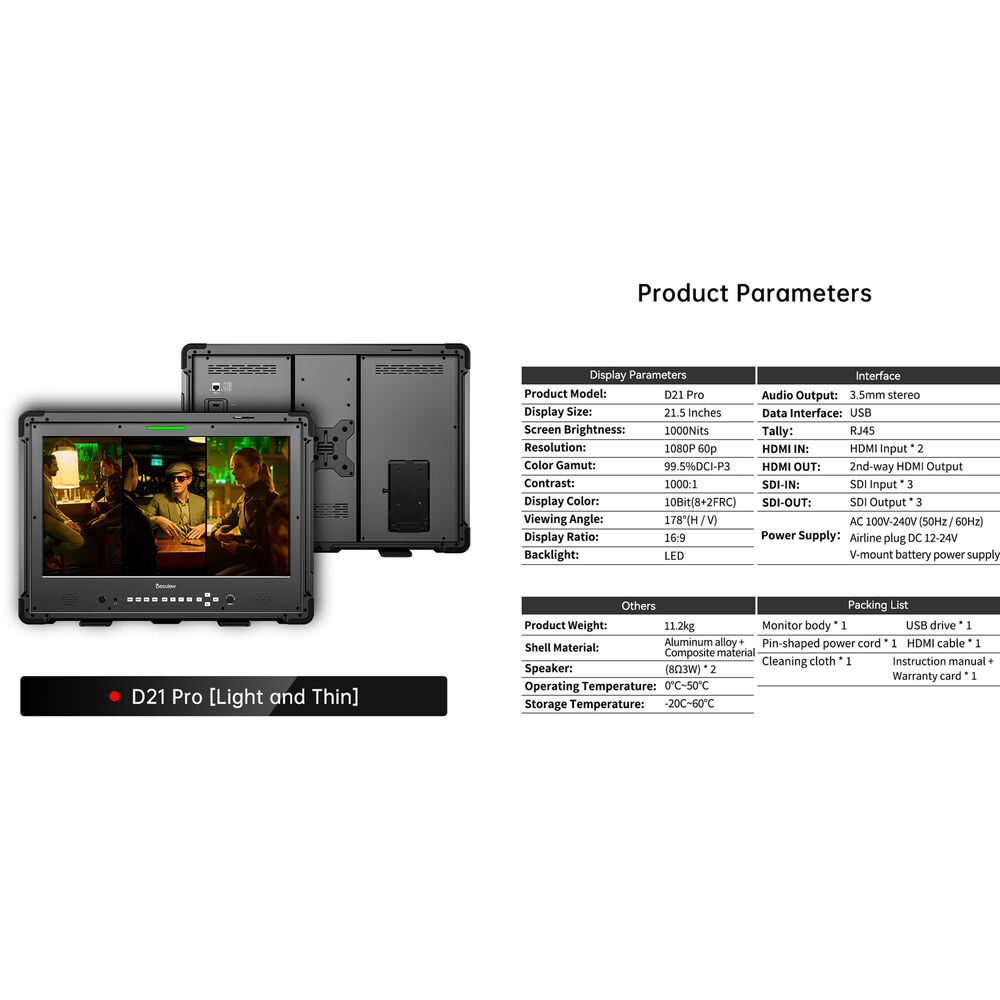

Specifications
100 to 240 VAC, 50 / 60 Hz
2x HDMI 2.0 Output

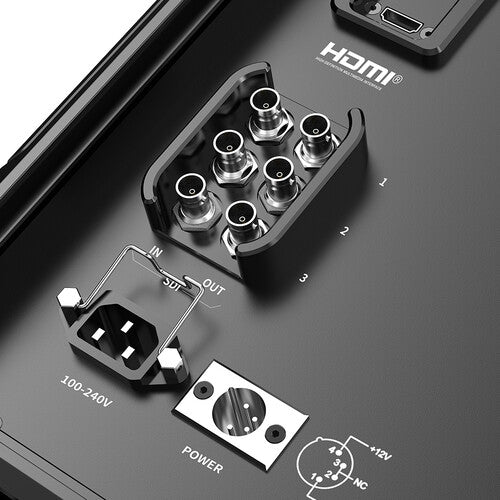

3x BNC (3G-SDI) Input
3x BNC (3G-SDI) Output
1x 1/8" / 3.5 mm Headphone Output
1x XLR 4-Pin Input
1x IEC Input
1x RJ45 (Tally)
Anti-Twist 3/8"-16 Female
