Desview OL7S 7" OLED High-Bright Touchscreen HDMI/3G-SDI On-Camera Monitor
Disclaimer for Aputure Replacement Parts. This product has extended lead time. Please allow an additional 7 - 10 business days for product delivery, from time of order completion.
Desview OL7S 7" OLED High-Bright Touchscreen HDMI/3G-SDI On-Camera Monitor
Precio de oferta$399.00
Description

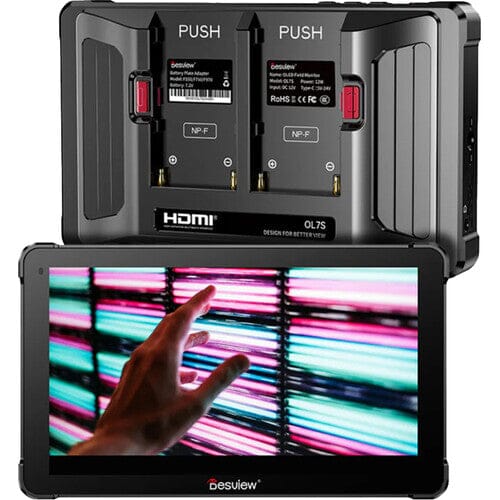

The ultrathin OL7S 7" OLED High-Bright Touchscreen HDMI/3G-SDI On-Camera Monitor from Desview provides clear viewing with 1200 cd/m² brightness, 100,000:1 contrast ratio, 10-bit color, and assignable shortcut keys. Features include 3G-SDI and HDMI 2.0 input and output, customizable LUTs, and support for up to DCI 4K60 HDMI video.
Ultrabright OLED Monitor
- The OL7S's OLED screen features faster pixel response times, producing smoother, lag-free movement in high-speed scenes.
- 1200 cd/m² brightness enables clear, vivid viewing, even outdoors.
Custom Shortcut Keys
- Customizable shortcut keys let you quickly access your most frequently used functions.
- Comprehensive image assist functions include waveform, vectorscope, audio meters, HDR, aspect ratio, histogram, color temperature, peak focus, false color, distortion, zebra, freeze frame, and more.
High-Resolution Display
The upgraded display supports up to 4K60 input and loop output for accurately viewing HDR imagery with high frame rates.
Professional Interfaces
The monitor features 3G-SDI and HDMI inputs and outputs, 3.5mm headphone output, USB-C PD power, and DC barrel input.
Ultrathin Body
The OL7S 7" OLED monitor is housed in an ultrathin aluminum alloy housing that features advanced heat dissipation.
Power Options

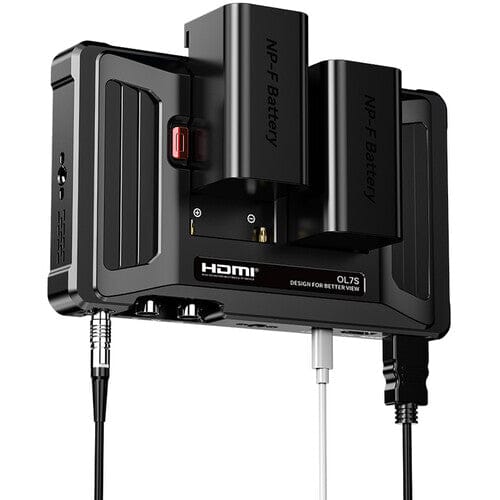

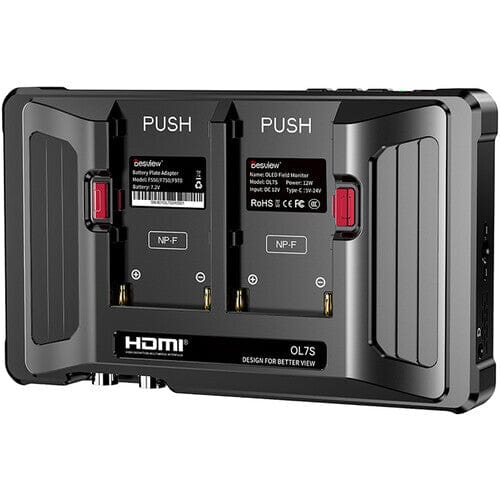

The dual L-series battery plate supports hot-swap power using two Sony L-series/NP-F batteries. You can also power the monitor using the USB-C PD or DC barrel power inputs.
**This product has extended lead times. Please allow 7 - 10 business days for delivery, upon order completion.
Download
No download available at this time.
Specifications
Input Voltage
7 to 26 VDC
Accessory I/O
1x HDMI 2.0 Input
1x HDMI 2.0 Output
1x BNC (3G-SDI)
Input 1x BNC (3G-SDI) Output
1x 1/8" / 3.5 mm Headphone Output
1x LEMO 2-Pin (26 VDC) Input
1x USB-C (21 VDC) Input
1x HDMI 2.0 Output
1x BNC (3G-SDI)
Input 1x BNC (3G-SDI) Output
1x 1/8" / 3.5 mm Headphone Output
1x LEMO 2-Pin (26 VDC) Input
1x USB-C (21 VDC) Input
Plate Front / Battery Mount
2x L-Series Mount on Fixed Plate
Accessory Mounting
Bottom/Left/Right Anti-Twist 1/4"-20 Female
Weight
3.0 lb
