Desview Core OL14 Pro 14" High-Bright Multiview Production Monitor
Disclaimer: This product has extended lead time. Please allow an additional 7 - 10 business days for product delivery, from time of order completion.
Desview Core OL14 Pro 14" High-Bright Multiview Production Monitor
Precio de oferta$1,299.00
Description
Delivering bright images even in highly lit environments, the Core OL14 Pro 14" High-Bright Multiview Production Monitor from Desview is a professional field monitor offering premium image quality and ergonomic features. A built-in VESA mount, carrying handle, and table stand enable easy transportation and setup. It provides 1200 cd/m² brightness, HDMI and SDI input and output, and multiview options.

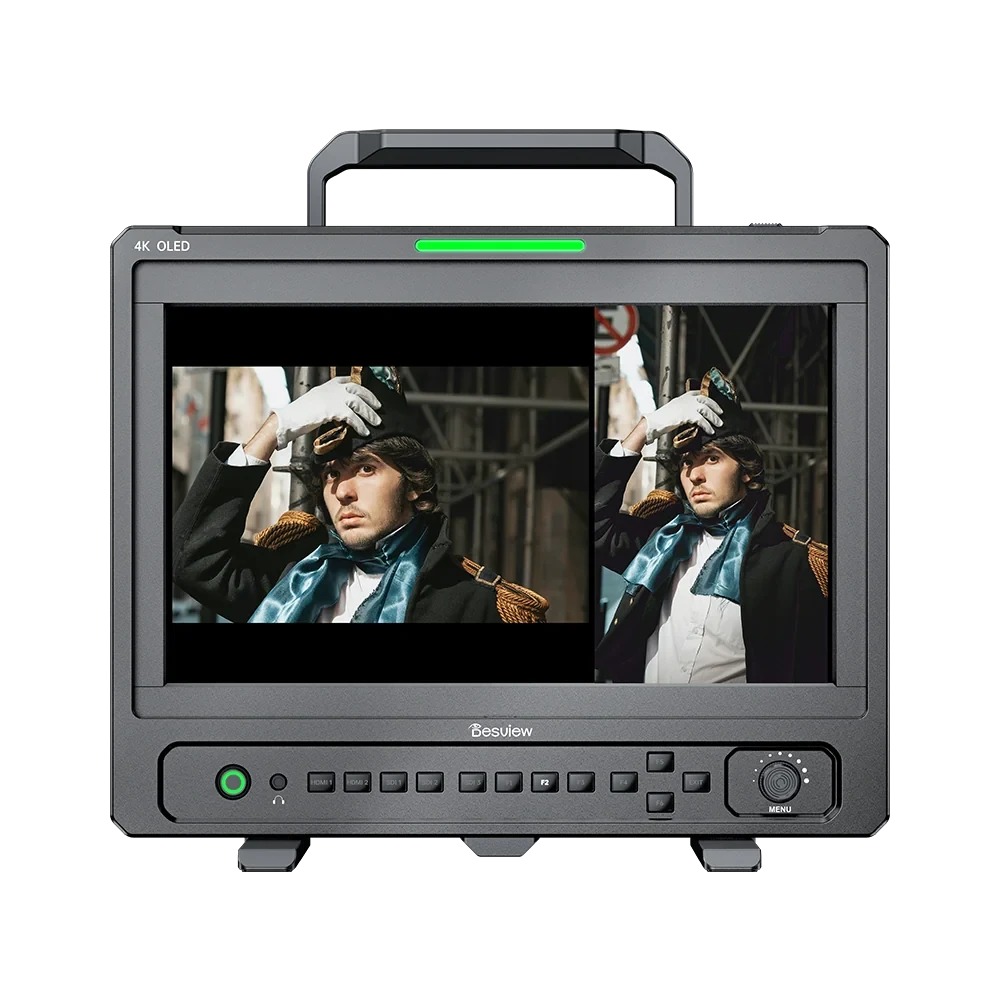

Multiview Modes
The Core OL14 Pro supports different multiview modes with both horizontal and vertical layouts.
Premium Display
- 14" OLED display with 1920 x 1080 native resolution.
- 1200 cd/m² brightness for daylight viewing.
- Built-in imaging tools.

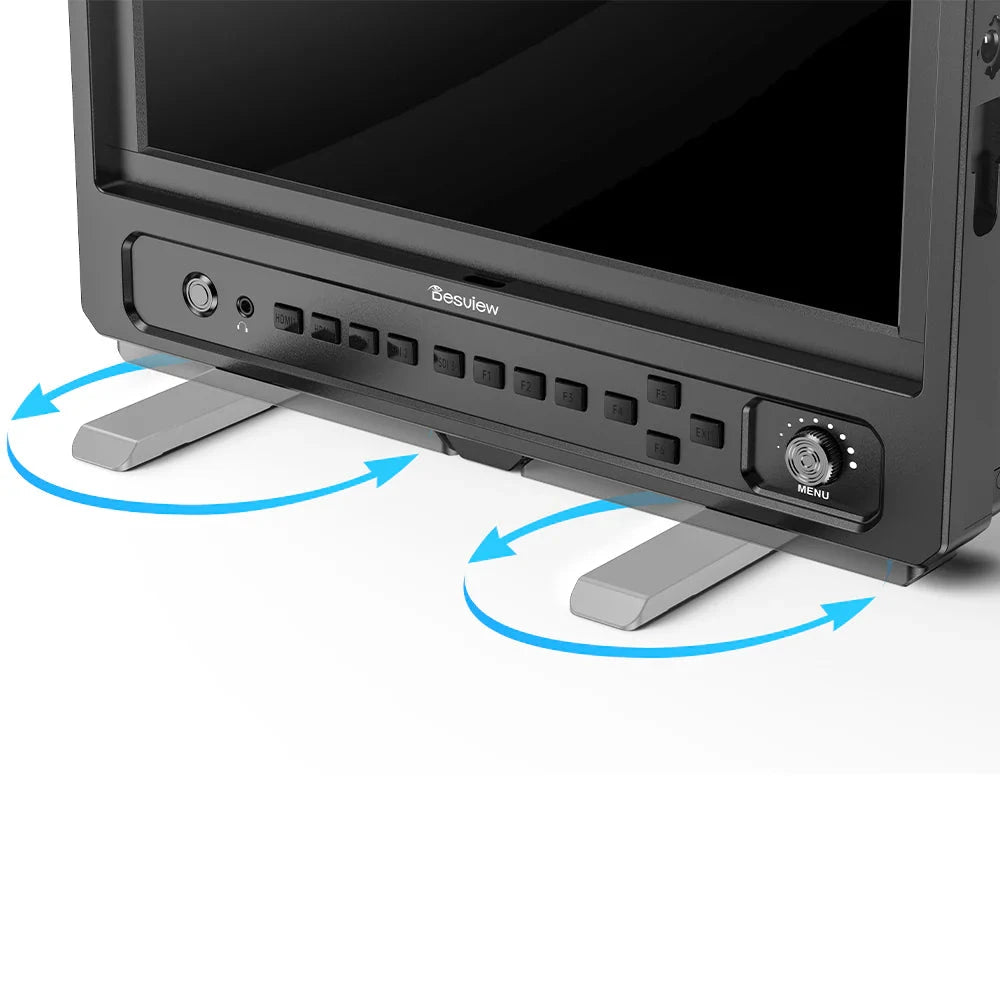

Front Panel Controls
Input selection buttons below the display make switching between the two HDMI and three SDI video inputs fast and intuitive. A menu dial and assignable function buttons enable you to quickly adjust the image using the built-in tools.

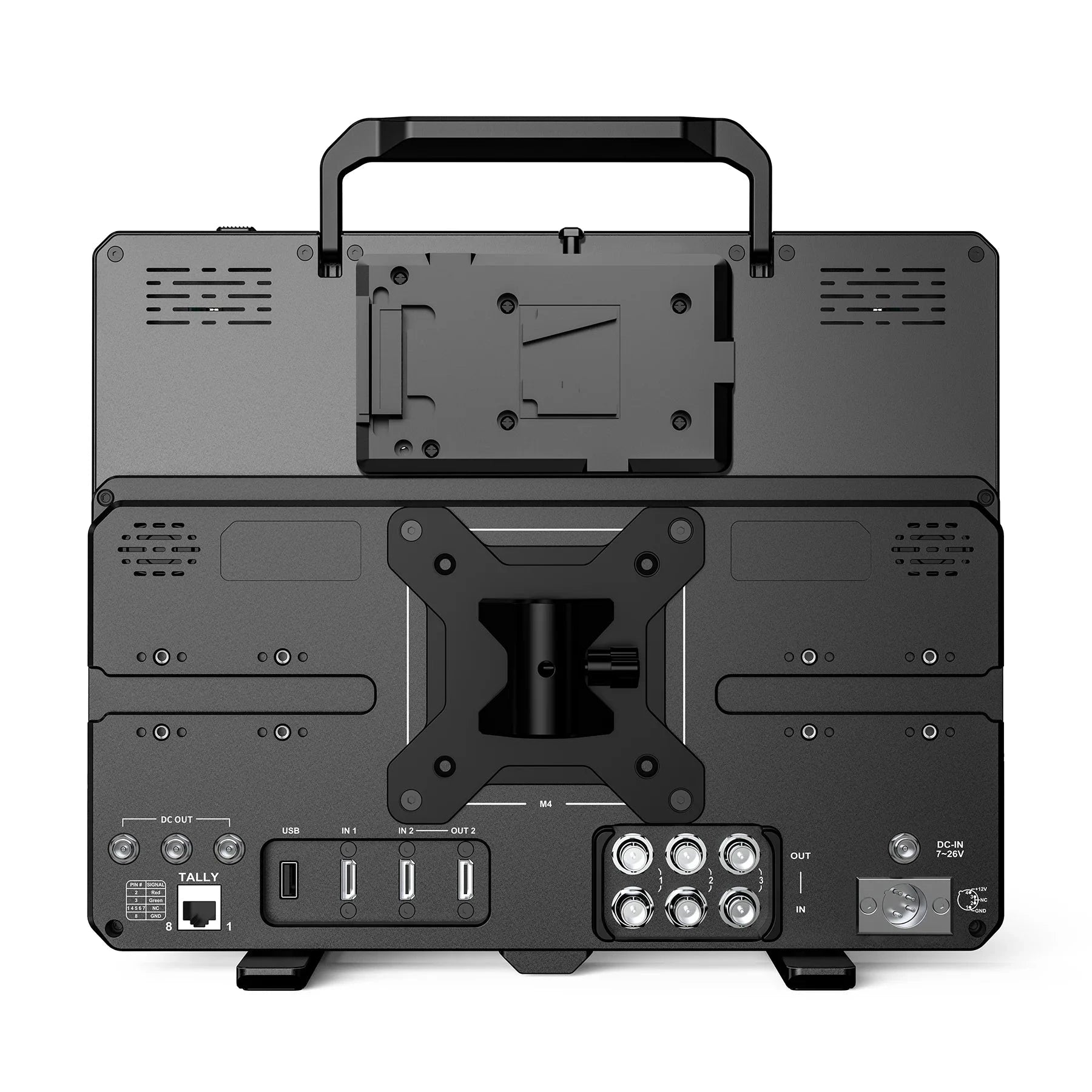

Connectivity
- Two 4K60 HDMI video input channels with single loop output.

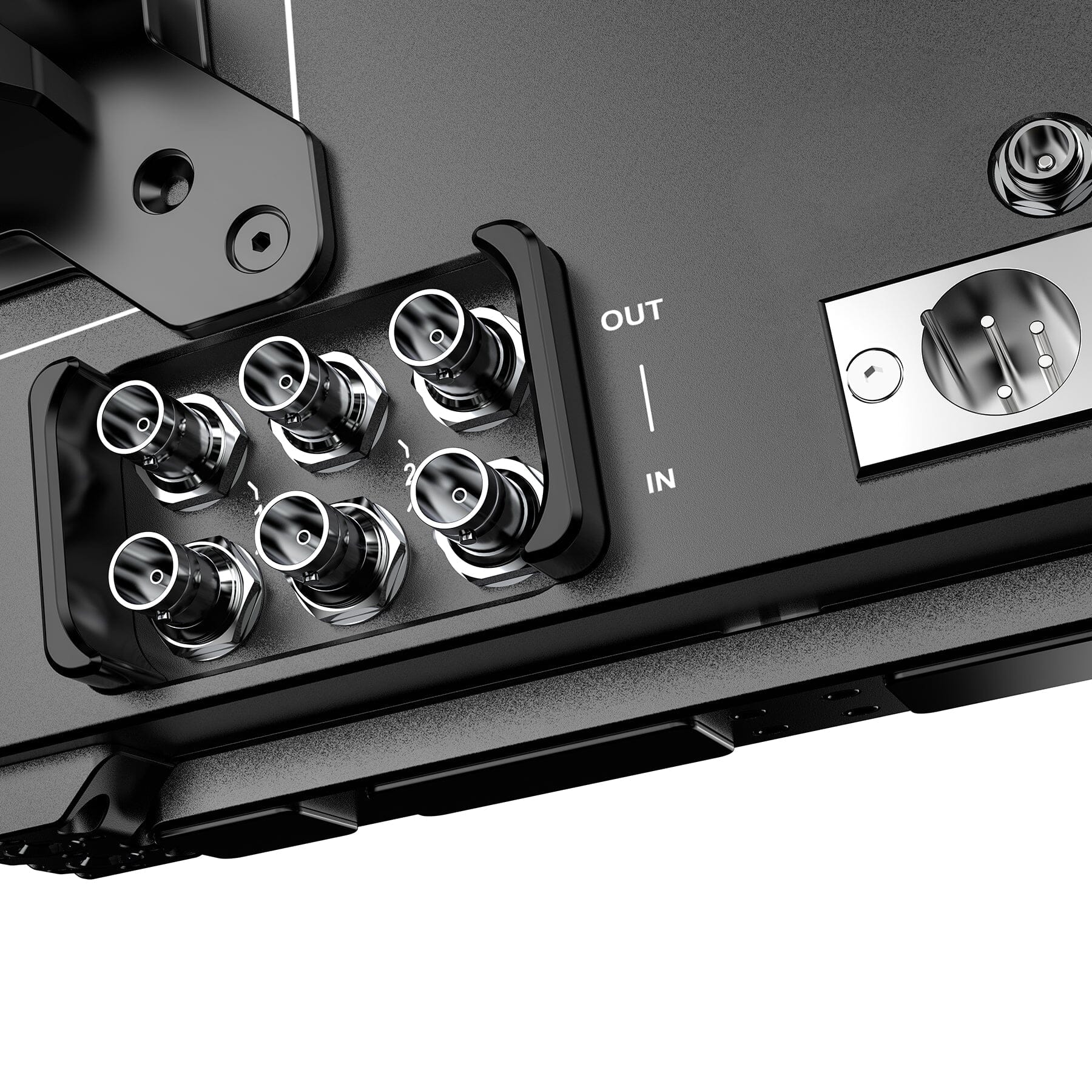

- Three SDI video channels with inputs and loop outputs.
- RJ45 tally input with front tally display.
- 7 to 24 VDC power input and three 10 VDC barrel power outputs.
- 4-pin XLR power input.

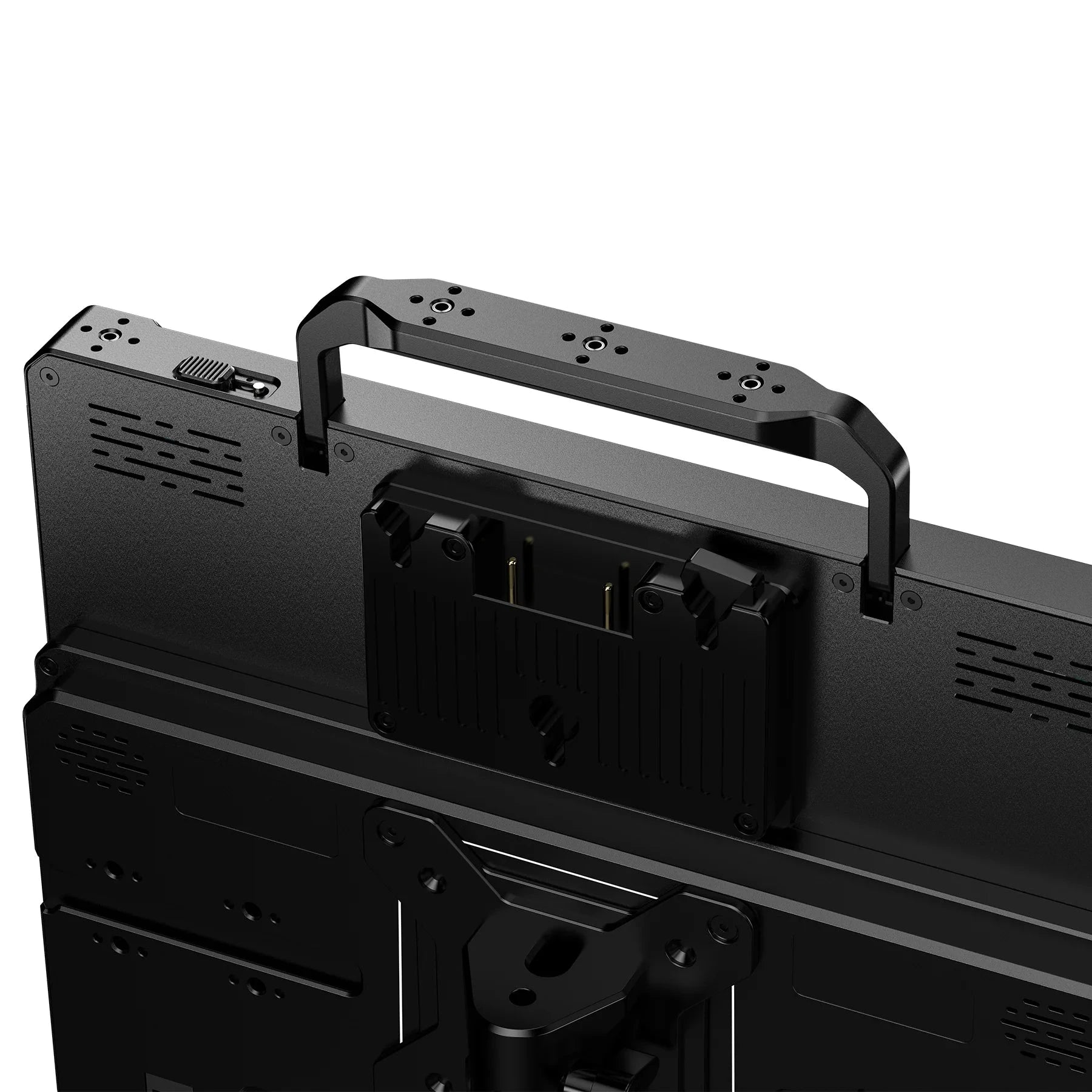

- Includes V-mount battery plate.
Design

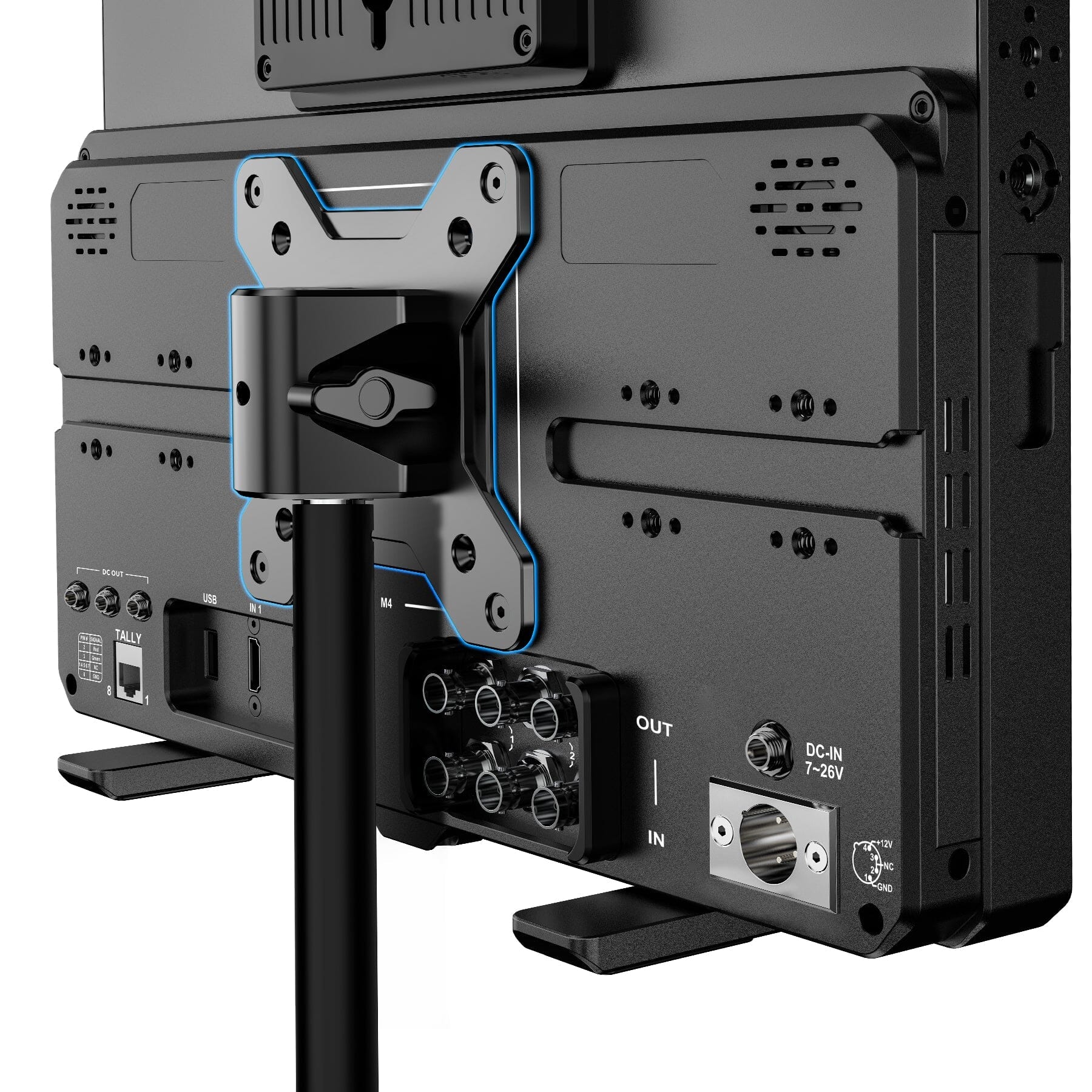

- VESA pattern for secure mounting.

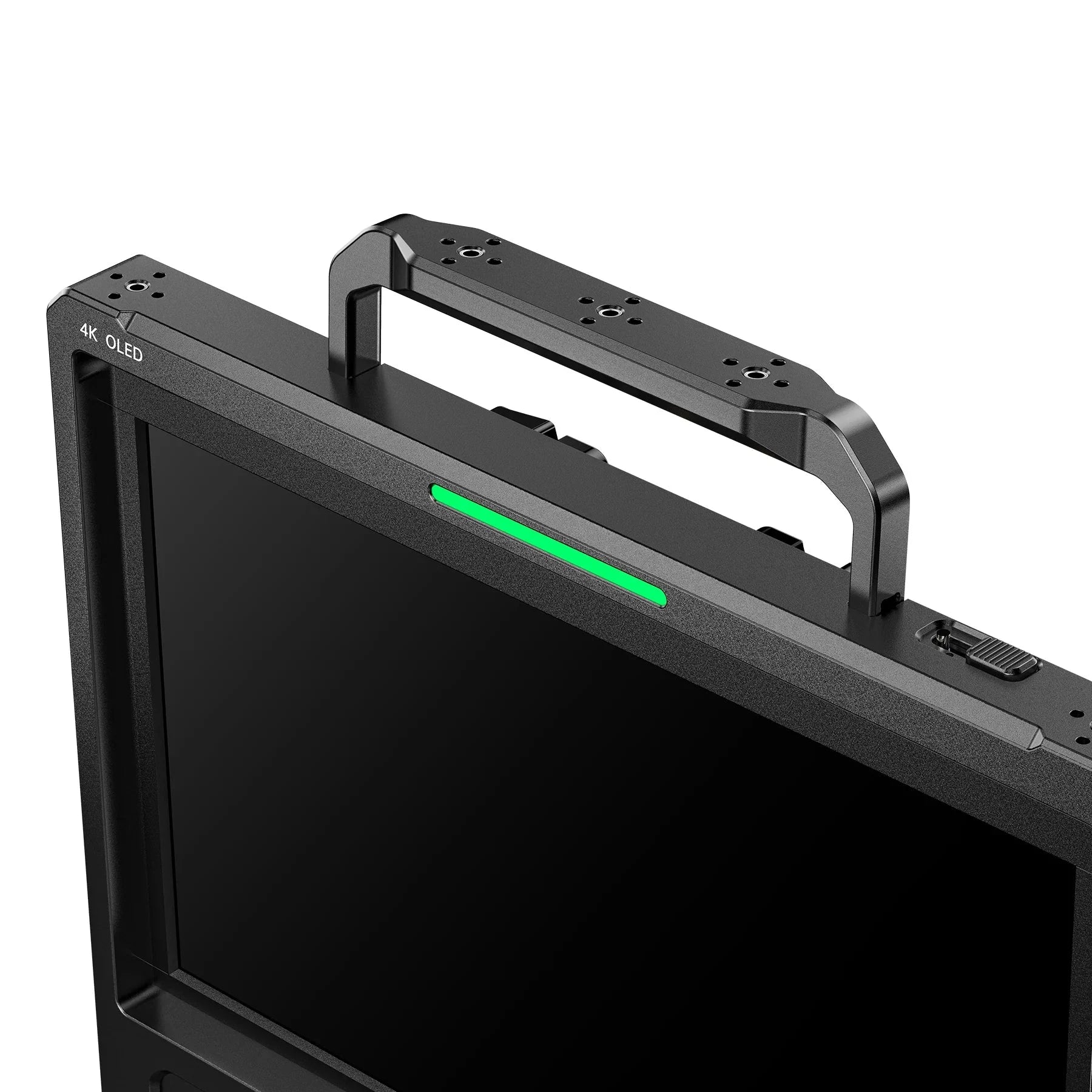

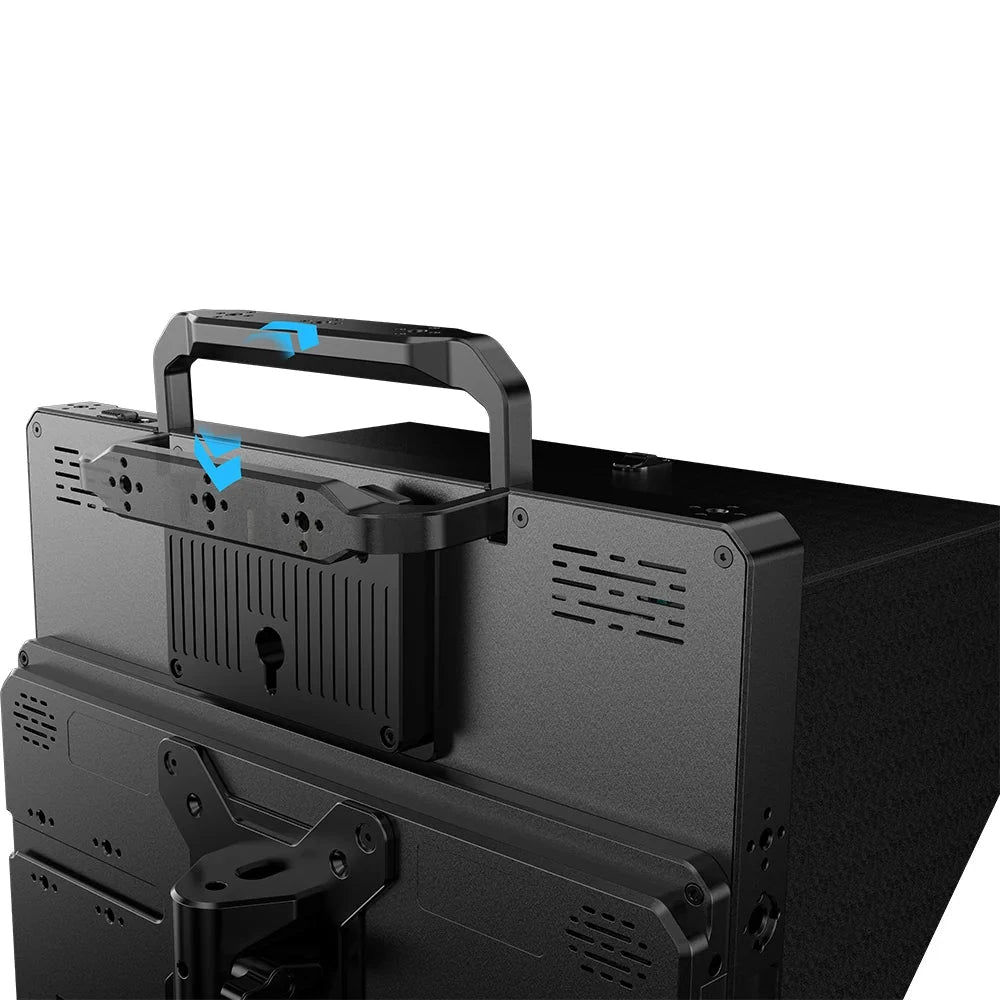

- Integrated folding top handle boosts convenience and mobility.
- Multiple buttons for input selection and auxiliary functions.
- Front 3.5mm audio headphone output.
**This product has extended lead times. Please allow 7 - 10 business days for delivery, upon order completion.
Download
No download available at this time.
Specifications
Input Voltage
7 to 26 VDC
Accessory I/O
3x BNC Input
3x BNC Output
2x HDMI Input
1x HDMI Output
1x XLR 4-Pin Input
3x Barrel (10 VDC) Output
1x RJ45 (Tally)
1x USB-A
1x 1/8" / 3.5 mm Output
3x BNC Output
2x HDMI Input
1x HDMI Output
1x XLR 4-Pin Input
3x Barrel (10 VDC) Output
1x RJ45 (Tally)
1x USB-A
1x 1/8" / 3.5 mm Output
Plate Front / Battery Mount
Interchangeable Mount (No Plate Included)
Accessory Mounting
Anti-Twist 1/4"-20 Female Anti-Twist 3/8"-16 Female
Weight
8.5 lb
